C++ API Reference

Overview

VegasAfterglow’s C++ core provides high-performance computation capabilities for GRB afterglow modeling. This section documents the C++ API for advanced users and developers who want to work directly with the C++ library. The library requires a C++20 compatible compiler.

Key Components

The C++ API is organized into several core components:

• Jet Models: Implementations of different jet structure models (top-hat, Gaussian, power-law, and user-defined)

• Ambient Medium: Classes for modeling the circumburst environment (ISM, wind, and user-defined)

• Radiation Processes: Components for synchrotron emission, synchrotron self-absorption, and inverse Compton (with Klein-Nishina corrections)

• Shock Dynamics: Forward and reverse shock physics with accurate evolution across relativistic and non-relativistic regimes

• Observer Effects: Classes for handling off-axis viewing angles and relativistic beaming

• Utilities: Helper functions and mathematical tools for GRB afterglow calculations

Using the C++ API

After compiling the library, you can create custom applications that use VegasAfterglow’s core functionality:

Including Headers

To use VegasAfterglow directly from C++, include the main header:

#include "afterglow.h"              // Main header for afterglow models

Building Custom Applications

Compile your C++ application, linking against the VegasAfterglow library:

g++ -std=c++20 -I/path/to/VegasAfterglow/include -L/path/to/VegasAfterglow/lib -o my_program my_program.cpp -lvegasafterglow

Note

Replace /path/to/VegasAfterglow/ with the actual path to your VegasAfterglow installation.

C++ API Documentation

Jet Models

class TophatJet

Implements a tophat jet profile where properties are uniform within a core angle theta_c and zero outside.

This class provides a simple model for GRB jets with sharp edges, characterized by isotropic equivalent energy E_iso and initial Lorentz factor Gamma0 within the core angle.

Public Functions

inline TophatJet(Real theta_c, Real E_iso, Real Gamma0, bool spreading = false, Real T0 = 1 * unit::sec) noexcept

Constructor: Initialize with core angle, isotropic energy, and initial Lorentz factor.

Parameters:

• theta_c – Core angle of the jet

• E_iso – Isotropic equivalent energy

• Gamma0 – Initial Lorentz factor

• T0 – Duration of the ejecta

• spreading – Flag indicating if the ejecta spreads laterally during evolution

inline Real eps_k(Real phi, Real theta) const noexcept

Energy per solid angle as a function of phi and theta.

Parameters:

• phi – Azimuthal angle (unused)

• theta – Polar angle

Returns:

Energy per solid angle (eps_k_ if theta < theta_c_, 0 otherwise)

inline Real Gamma0(Real phi, Real theta) const noexcept

Initial Lorentz factor as a function of phi and theta.

Parameters:

• phi – Azimuthal angle (unused)

• theta – Polar angle

Returns:

Lorentz factor (Gamma0_ if theta < theta_c_, 1 otherwise)

Public Members

Real T0 = {1 * unit::sec}

Duration of the ejecta in seconds.

bool spreading = {false}

Flag indicating if the ejecta spreads laterally during evolution.

class GaussianJet

Implements a Gaussian jet profile where properties follow a Gaussian distribution with angle.

This class provides a smooth model for GRB jets, characterized by core angle theta_c, isotropic equivalent energy E_iso, and initial Lorentz factor Gamma0 at the center.

Public Functions

inline GaussianJet(Real theta_c, Real E_iso, Real Gamma0, bool spreading = false, Real T0 = 1 * unit::sec) noexcept

Constructor: Initialize with core angle, isotropic energy, and initial Lorentz factor.

Parameters:

• theta_c – Core angle of the jet

• E_iso – Isotropic equivalent energy

• Gamma0 – Initial Lorentz factor

• T0 – Duration of the ejecta

• spreading – Flag indicating if the ejecta spreads laterally during evolution

inline Real eps_k(Real phi, Real theta) const noexcept

Energy per solid angle as a function of phi and theta, with Gaussian falloff.

Parameters:

• phi – Azimuthal angle (unused)

• theta – Polar angle

Returns:

Energy per solid angle with Gaussian angular dependence

inline Real Gamma0(Real phi, Real theta) const noexcept

Initial Lorentz factor as a function of phi and theta, with Gaussian falloff.

Parameters:

• phi – Azimuthal angle (unused)

• theta – Polar angle

Returns:

Lorentz factor with Gaussian angular dependence

Public Members

Real T0 = {1 * unit::sec}

Duration of the ejecta in seconds.

bool spreading = {false}

Flag indicating if the ejecta spreads laterally during evolution.

class PowerLawJet

Implements a power-law jet profile where properties follow a power-law distribution with angle.

This class provides a model for GRB jets with a power-law decay, characterized by core angle theta_c, isotropic equivalent energy E_iso, initial Lorentz factor Gamma0, and power-law index k.

Public Functions

inline PowerLawJet(Real theta_c, Real E_iso, Real Gamma0, Real k, bool spreading = false, Real T0 = 1 * unit::sec) noexcept

Constructor: Initialize with core angle, isotropic energy, initial Lorentz factor, and power-law index.

Parameters:

• theta_c – Core angle of the jet

• E_iso – Isotropic equivalent energy

• Gamma0 – Initial Lorentz factor

• k – Power-law index

• T0 – Duration of the ejecta

• spreading – Flag indicating if the ejecta spreads laterally during evolution

inline Real eps_k(Real phi, Real theta) const noexcept

Energy per solid angle as a function of phi and theta, with power-law falloff.

Parameters:

• phi – Azimuthal angle (unused)

• theta – Polar angle

Returns:

Energy per solid angle with power-law angular dependence

inline Real Gamma0(Real phi, Real theta) const noexcept

Initial Lorentz factor as a function of phi and theta, with power-law falloff.

Parameters:

• phi – Azimuthal angle (unused)

• theta – Polar angle

Returns:

Lorentz factor with power-law angular dependence

Public Members

Real T0 = {1 * unit::sec}

Duration of the ejecta in seconds.

bool spreading = {false}

Flag indicating if the ejecta spreads laterally during evolution.

class Ejecta

Represents generic ejecta properties for a simulation.

Uses ternary functions (TernaryFunc) to accept user-defined ejecta that describes various quantities as functions of phi, theta, and time. This class encapsulates all the properties of the material ejected in a gamma-ray burst, including its energy, magnetization, and Lorentz factor profiles.

Public Functions

inline Ejecta(BinaryFunc eps_k, BinaryFunc Gamma0, BinaryFunc sigma0 = func::zero_2d, TernaryFunc deps_dt = func::zero_3d, TernaryFunc dm_dt = func::zero_3d, bool spreading = false, Real T0 = 1 * unit::sec) noexcept

Constructor: Initialize with core angle, isotropic energy, and initial Lorentz factor.

Parameters:

• eps_k – Energy per unit solid angle as a function of (phi, theta)

• Gamma0 – Lorentz factor as a function of (phi, theta)

• sigma0 – Magnetization parameter as a function of (phi, theta)

• deps_dt – Energy injection rate per solid angle as a function of (phi, theta, t)

• dm_dt – Mass injection rate per unit solid angle as a function of (phi, theta, t)

• T0 – Duration of the ejecta

• spreading – Flag indicating if the ejecta spreads laterally during evolution

Ejecta() = default

Public Members

BinaryFunc eps_k = {func::zero_2d}

Initial energy per unit solid angle as a function of (phi, theta)

BinaryFunc Gamma0 = {func::one_2d}

Lorentz factor profile in the ejecta as a function of (phi, theta) Default is uniform (one) across all angles.

BinaryFunc sigma0 = {func::zero_2d}

Initial magnetization parameter as a function of (phi, theta)

TernaryFunc deps_dt = {func::zero_3d}

Energy injection rate per solid angle as a function of (phi, theta, t) Default is no energy injection (zero)

TernaryFunc dm_dt = {func::zero_3d}

Mass injection rate per unit solid angle as a function of (phi, theta, t) Default is no mass injection (zero)

Real T0 = {1 * unit::sec}

Duration of the ejecta in seconds.

bool spreading = {false}

Flag indicating if the ejecta spreads laterally during evolution.

Ambient Medium

class ISM

Implements a uniform interstellar medium (ISM) with constant density.

Provides methods to compute density and integrated mass at any position. The ISM is characterized by the particle number density n_ism.

Public Functions

inline ISM(Real n_ism) noexcept

Constructor: Initialize with particle number density in cm^-3.

Parameters:

n_ism – Particle number density in cm^-3

inline Real rho(Real phi, Real theta, Real r) const noexcept

Return density at given position (constant everywhere)

Parameters:

• phi – Azimuthal angle (unused)

• theta – Polar angle (unused)

• r – Radial distance (unused)

Returns:

Constant density value

inline Real mass(Real phi, Real theta, Real r) const noexcept

Return integrated mass per solid angle within radius r (proportional to r^3)

Parameters:

• phi – Azimuthal angle (unused)

• theta – Polar angle (unused)

• r – Radial distance

Returns:

Mass enclosed within radius r (= rho * r^3 / 3)

class Wind

Implements a stellar wind medium with density proportional to 1/r².

Provides methods to compute density and integrated mass at any position. The wind is characterized by the wind parameter A_star.

Public Functions

inline Wind(Real A_star) noexcept

Constructor: Initialize with wind parameter A_star (in standard units)

Parameters:

A_star – Wind density parameter in standard units

inline Real rho(Real phi, Real theta, Real r) const noexcept

Return density at given position (proportional to 1/r²)

Parameters:

• phi – Azimuthal angle (unused)

• theta – Polar angle (unused)

• r – Radial distance

Returns:

Density value at radius r (= A/r²)

inline Real mass(Real phi, Real theta, Real r) const noexcept

Return integrated mass per solid angle within radius r (proportional to r)

Parameters:

• phi – Azimuthal angle (unused)

• theta – Polar angle (unused)

• r – Radial distance

Returns:

Mass enclosed within radius r (= A * r)

class Medium

Represents the generic medium or any user-defined surrounding medium that the GRB jet interacts with.

The class provides methods to compute the density (rho) as a function of position (phi, theta, r).

Public Functions

inline Medium(TernaryFunc rho, TernaryFunc mass) noexcept

Constructor: Initialize with density function and mass function.

Parameters:

• rho – Density function

• mass – Mass function

Medium() = default

Public Members

TernaryFunc rho = {func::zero_3d}

Density function that returns the mass density at a given position (phi, theta, r) The function is initialized to zero by default.

TernaryFunc mass = {func::zero_3d}

Mass function that returns the integrated mass per solid angle within a radius r at position (phi, theta, r).

please make sure this is consistent with the density function, where m = \int rho * r^2 dr

Radiation Processes

struct SynPhotons

Collaboration diagram for SynPhotons:

Represents synchrotron photons in the comoving frame and provides spectral functions.

Public Functions

Real compute_I_nu(Real nu) const

Calculates the synchrotron intensity at a given frequency.

Includes inverse Compton corrections for frequencies above the cooling frequency.

Parameters:

nu – Frequency at which to compute the intensity

Returns:

The synchrotron intensity at the specified frequency Linear intensity

Real compute_log2_I_nu(Real log2_nu) const

Calculates the base-2 logarithm of synchrotron intensity at a given frequency.

Optimized for numerical computation by using logarithmic arithmetic.

Parameters:

log2_nu – Base-2 logarithm of the frequency

Returns:

Base-2 logarithm of synchrotron intensity Log2 intensity (for computational efficiency)

void update_constant()

Updates cached calculation constants used for efficiently computing synchrotron spectra.

Constants vary based on the electron regime (1-6) and involve different power laws.

Public Members

Real nu_m = {0}

Characteristic frequency corresponding to gamma_m.

Real nu_c = {0}

Cooling frequency corresponding to gamma_c.

Real nu_a = {0}

Self-absorption frequency.

Real nu_M = {0}

Maximum photon frequency.

Real log2_I_nu_peak = {0}

Log2 of peak intensity (for computational efficiency)

Real log2_nu_m = {0}

Log2 of nu_m.

Real log2_nu_c = {0}

Log2 of nu_c.

Real log2_nu_a = {0}

Log2 of nu_a.

Real log2_nu_M = {0}

Log2 of nu_M.

const SynElectrons *elec = {nullptr}

Pointer to the associated SynElectrons.

struct SynElectrons

Collaboration diagram for SynElectrons:

Represents synchrotron-emitting electrons in the comoving frame along with their energy distribution and properties.

Public Functions

Real compute_column_num_den(Real gamma) const

Calculates the electron column number density at a specific Lorentz factor.

Includes corrections for inverse Compton cooling effects above the cooling Lorentz factor.

Parameters:

gamma – Electron Lorentz factor

Returns:

Column number density at the specified Lorentz factor

Public Members

Real I_nu_peak = {0}

Peak intensity at the characteristic frequency.

Real gamma_m = {0}

Minimum electron Lorentz factor.

Real gamma_c = {0}

Cooling electron Lorentz factor.

Real gamma_a = {0}

Self-absorption Lorentz factor.

Real gamma_M = {0}

Maximum electron Lorentz factor.

Real p = {2.3}

Power-law index for the electron energy distribution.

Real column_num_den = {0}

Normalized column number density.

Real Y_c = {0}

Inverse Compton Y parameter at cooling frequency.

size_t regime = {0}

Regime indicator (1-6, determines spectral shape)

InverseComptonY Ys

InverseComptonY parameters for this electron population.

struct InverseComptonY

Handles Inverse Compton Y parameter calculations and related threshold values.

Public Functions

InverseComptonY(Real nu_m, Real nu_c, Real B, Real Y_T) noexcept

Initializes an InverseComptonY object with frequency thresholds, magnetic field and Y parameter.

Computes characteristic gamma values and corresponding frequencies, then determines cooling regime.

Parameters:

• nu_m – Characteristic frequency for minimum Lorentz factor

• nu_c – Characteristic frequency for cooling Lorentz factor

• B – Magnetic field strength

• Y_T – Thomson Y parameter

InverseComptonY(Real Y_T) noexcept

Simple constructor that initializes with only the Thomson Y parameter for special cases.

Parameters:

Y_T – Thomson Y parameter

InverseComptonY() noexcept

Default constructor that initializes all member variables to zero.

Real compute_val_at_nu(Real nu, Real p) const

Calculates the effective Y parameter for a given frequency and spectral index.

Different scaling relations apply depending on the cooling regime and frequency range.

Parameters:

• nu – Frequency at which to compute the Y parameter

• p – Spectral index of electron distribution

Returns:

The effective Y parameter at the given frequency

Real compute_val_at_gamma(Real gamma, Real p) const

Calculates the effective Y parameter for a given Lorentz factor and spectral index.

Different scaling relations apply depending on the cooling regime and gamma value.

Parameters:

• gamma – Electron Lorentz factor

• p – Spectral index of electron distribution

Returns:

The effective Y parameter at the given gamma

Public Members

Real nu_hat_m = {0}

Frequency threshold for minimum electrons.

Real nu_hat_c = {0}

Frequency threshold for cooling electrons.

Real gamma_hat_m = {0}

Lorentz factor threshold for minimum energy electrons.

Real gamma_hat_c = {0}

Lorentz factor threshold for cooling electrons.

Real Y_T = {0}

Thomson scattering Y parameter.

size_t regime = {0}

Indicator for the operating regime (1=fast IC cooling, 2=slow IC cooling, 3=special case)

Public Static Functions

static Real compute_Y_Thompson(InverseComptonY const &Ys)

Returns the Thomson Y parameter from the provided InverseComptonY object.

Previously supported summing Y parameters from multiple objects.

Parameters:

Ys – InverseComptonY object

Returns:

The Thomson Y parameter Returns Y_T parameter

static Real compute_Y_tilt_at_gamma(InverseComptonY const &Ys, Real gamma, Real p)

Calculates the effective Y parameter at a specific Lorentz factor and spectral index.

Previously supported summing contributions from multiple InverseComptonY objects.

Parameters:

• Ys – InverseComptonY object

• gamma – Electron Lorentz factor

• p – Spectral index of electron distribution

Returns:

The effective Y parameter at the given gamma

static Real compute_Y_tilt_at_nu(InverseComptonY const &Ys, Real nu, Real p)

Calculates the effective Y parameter at a specific frequency and spectral index.

Previously supported summing contributions from multiple InverseComptonY objects.

Parameters:

• Ys – InverseComptonY object

• nu – Frequency at which to compute the Y parameter

• p – Spectral index of electron distribution

Returns:

The effective Y parameter at the given frequency

Shock Dynamics

class Shock

Collaboration diagram for Shock:

Represents a shock wave in an astrophysical environment.

The class stores physical properties of the shock across a 3D grid defined by azimuthal angle (phi), polar angle (theta), and time bins. Provides methods for shock calculations, including relativistic jump conditions, magnetic field calculations, and energy density computations.

Public Functions

Shock(size_t phi_size, size_t theta_size, size_t t_size, RadParams const &rad_params)

Constructs a Shock object with the given grid dimensions and energy fractions.

Initializes various 3D grids for storing physical properties of the shock, including comoving time, radius, Lorentz factors, magnetic fields, and downstream densities.

Parameters:

• phi_size – Number of grid points in phi direction

• theta_size – Number of grid points in theta direction

• t_size – Number of grid points in time direction

• rad_params – Radiation parameters

Shock() noexcept = default

inline auto shape() const

Returns grid dimensions as a tuple.

void resize(size_t phi_size, size_t theta_size, size_t t_size)

Resizes all grid components of the Shock object to new dimensions.

Parameters:

• phi_size – New number of grid points in phi direction

• theta_size – New number of grid points in theta direction

• t_size – New number of grid points in time direction

Public Members

MeshGrid3d t_comv

Comoving time.

MeshGrid3d r

Radius.

MeshGrid3d theta

Theta for jet spreading.

MeshGrid3d Gamma

Bulk Lorentz factor.

MeshGrid3d Gamma_rel

Relative Lorentz factor between downstream and upstream.

MeshGrid3d B

Comoving magnetic field.

MeshGrid3d proton_column_num_den

Downstream proton column number density.

MeshGrid injection_idx

Beyond which grid index there is no electron injection.

MaskGrid required

Grid points actually required for final flux calculation.

RadParams rad

Radiation parameters.

template<typename Ejecta, typename Medium>
class SimpleShockEqn

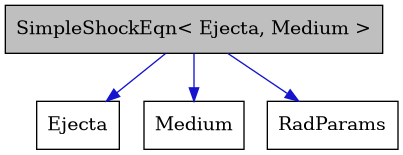

Collaboration diagram for SimpleShockEqn:

Represents the forward shock equation for a given Jet.

It defines a state vector and overloads operator() to compute the derivatives of the state with respect to time t. It also declares helper functions for the derivatives. Simple version from Huang et al. 2000

Public Types

using State = SimpleState<Ejecta, Medium>

Public Functions

SimpleShockEqn(Medium const &medium, Ejecta const &ejecta, Real phi, Real theta, RadParams const &rad_params, Real theta_s)

Initializes a SimpleShockEqn object with medium, ejecta, and other parameters.

Creates a new shock equation object with references to the medium and ejecta along with the angular coordinates and energy fraction.

Parameters:

• medium – The medium through which the shock propagates

• ejecta – The ejecta driving the shock

• phi – Azimuthal angle

• theta – Polar angle

• rad_params – Radiation parameters

• theta_s – Critical angle for jet spreading

void operator()(State const &state, State &diff, Real t) const noexcept

Computes the derivatives of the state variables with respect to engine time t.

Implements the system of ODEs for the simple shock model.

Parameters:

• state – Current state of the system

• diff – Output derivatives to be populated

• t – Current time

void set_init_state(State &state, Real t0) const noexcept

Initializes the state vector at time t0.

Sets appropriate initial values based on ejecta and medium properties.

Parameters:

• state – State vector to initialize

• t0 – Initial time

Public Members

Medium const &medium

Reference to the medium properties.

Ejecta const &ejecta

Reference to the ejecta properties.

Real const phi = {0}

Angular coordinate phi.

Real const theta0 = {0}

Angular coordinate theta.

RadParams const rad

Radiation parameters.

template<typename Ejecta, typename Medium>
class ForwardShockEqn

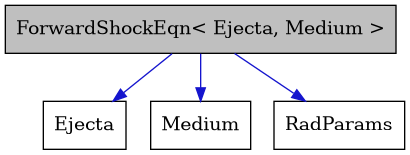

Collaboration diagram for ForwardShockEqn:

Represents the forward shock equation for a given jet and medium.

It defines a state vector (with variable size based on template parameters) and overloads operator() to compute the derivatives of the state with respect to t. It also declares helper functions for the derivatives. This class implements the physical equations governing the forward shock evolution.

Template Parameters:

• Ejecta – The ejecta class template parameter

• Medium – The medium class template parameter

Public Types

using State = ForwardState<Ejecta, Medium>

Public Functions

ForwardShockEqn(Medium const &medium, Ejecta const &ejecta, Real phi, Real theta, RadParams const &rad_params, Real theta_s)

ForwardShockEqn constructor.

Initializes the forward shock equation with the given medium, ejecta, and parameters.

Parameters:

• medium – The medium through which the shock propagates

• ejecta – The ejecta driving the shock

• phi – Azimuthal angle

• theta – Polar angle

• rad_params – Radiation parameters

• theta_s – Critical angle for jet spreading

void operator()(State const &state, State &diff, Real t) const noexcept

Computes the derivatives of the state variables with respect to engine time t.

Implements the system of ODEs that describe the evolution of the forward shock.

Parameters:

• state – Current state of the system

• diff – Output derivatives to be populated

• t – Current time

void set_init_state(State &state, Real t0) const noexcept

Set the initial conditions for the forward shock ODE solver.

Computes the initial state of the shock based on the ejecta properties and ambient medium.

Parameters:

• state – State vector to initialize

• t0 – Initial time

Public Members

Medium const &medium

Reference to the ambient medium properties.

Ejecta const &ejecta

Reference to the ejecta properties.

Real const phi = {0}

Angular coordinate phi in the jet frame.

Real const theta0 = {0}

Initial angular coordinate theta.

RadParams const rad

Radiation parameters.

template<typename Ejecta, typename Medium>
class FRShockEqn

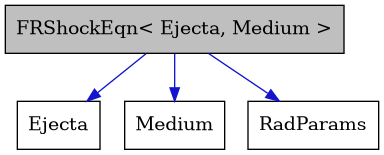

Collaboration diagram for FRShockEqn:

Represents the reverse shock (or forward-reverse shock) equation for a given Jet and medium.

It defines a state vector (an array of 8 Reals) and overloads operator() to compute the derivatives of the state with respect to radius r.

Public Types

using State = ReverseState<Ejecta, Medium>

Public Functions

FRShockEqn(Medium const &medium, Ejecta const &jet, Real phi, Real theta, RadParams const &rad_params)

Constructor for the FRShockEqn class.

Initializes the forward-reverse shock equation with the given medium, ejecta, and parameters.

Parameters:

• medium – The medium through which the shock propagates

• ejecta – The ejecta driving the shock

• phi – Azimuthal angle

• theta – Polar angle

void operator()(State const &state, State &diff, Real t)

Implements the reverse shock ODE system.

Computes the derivatives of state variables with respect to time.

Parameters:

• state – Current state of the system

• diff – Output derivatives to be populated

• t – Current time

bool set_init_state(State &state, Real t0) const noexcept

Set the initial conditions for the reverse shock ODE.

Sets up initial state values and determines if the shock has already crossed.

Parameters:

• state – State vector to initialize

• t0 – Initial time

Returns:

True if the shock has already crossed at the initial time, false otherwise

void set_cross_state(State const &state, Real B)

Sets constants at the shock crossing point for later calculations.

Stores key parameters and switches the ODE from crossing to crossed state.

Parameters:

• state – State at shock crossing

• B – Magnetic field at shock crossing

Real compute_crossing_Gamma3(State const &state) const

Computes the Lorentz factor (Gamma3) during shock crossing.

Uses energy conservation to determine the appropriate Gamma3 value.

Parameters:

state – Current state of the system

Returns:

The computed Lorentz factor for region 3 (shocked ejecta)

Real compute_crossed_Gamma_rel(State const &state) const

Computes the relative Lorentz factor after shock crossing.

Uses adiabatic expansion to determine the relative Lorentz factor.

Parameters:

state – Current state of the system

Returns:

The relative Lorentz factor post-crossing

Real compute_crossed_B(State const &state) const

Computes the magnetic field after shock crossing.

Calculates magnetic field based on pressure and energy conservation.

Parameters:

state – Current state of the system

Returns:

Magnetic field strength in the shocked region

Real compute_crossed_Gamma3(Real Gamma_rel, Real r) const

Computes the Lorentz factor for region 3 after shock crossing.

Uses a power-law profile that applies both in relativistic and Newtonian regimes.

Parameters:

• gamma_rel – Relative Lorentz factor

• r – Current radius

Returns:

The Lorentz factor for region 3 post-crossing

Real compute_shell_sigma(State const &state) const

Calculates the magnetization parameter of the shell.

Sigma is defined as (ε/Γmc²) - 1, where ε is the energy per solid angle.

Parameters:

state – Current state of the system

Returns:

The magnetization parameter of the shell

bool is_injecting(Real t) const

Checks if the ejecta is still injecting mass or energy at time t.

Returns true if either energy or mass is being injected.

Parameters:

t – Current time

Returns:

Boolean indicating if injection is happening at time t

Public Members

Medium const &medium

Reference to the medium properties.

Ejecta const &ejecta

Reference to the jet properties.

RadParams const rad

Radiation parameters.

Real const phi = {0}

Angular coordinate phi.

Real const theta0 = {0}

Angular coordinate theta.

Real Gamma4 = {1}

Initial Lorentz factor of the jet.

Real u_x = {0}

Reverse shock crossed four velocity.

Real r_x = {0}

Reverse shock crossed radius.

Physics and Utilities

class Observer

Represents an observer in the GRB afterglow simulation.

This class handles the calculation of observed quantities such as specific flux, integrated flux, and spectra. It accounts for relativistic effects (Doppler boosting), cosmological effects (redshift), and geometric effects (solid angle). The observer can be placed at any viewing angle relative to the jet axis.

Public Functions

Observer() = default

Default constructor.

void observe(Coord const &coord, Shock const &shock, Real luminosity_dist, Real redshift)

Sets up the Observer for flux calculation.

Initializes the observation time and Doppler factor grids, as well as the emission surface.

Parameters:

• coord – Coordinate grid containing angular information

• shock – Shock object containing the evolution data

• luminosity_dist – Luminosity distance to the source

• redshift – Redshift of the source

void observe_at(Array const &t_obs, Coord const &coord, Shock &shock, Real luminosity_dist, Real redshift)

Sets up the Observer for flux calculation at specific observation times.

Similar to observe(), but also marks required grid points for the given observation times.

Parameters:

• t_obs – Array of observation times

• coord – Coordinate grid containing angular information

• shock – Shock object containing the evolution data (modified to mark required points)

• luminosity_dist – Luminosity distance to the source

• redshift – Redshift of the source

template<typename ...PhotonGrid>
Array specific_flux(Array const &t_obs, Real nu_obs, PhotonGrid const&... photons)

Computes the specific flux at a single observed frequency.

Returns the specific flux (as an Array) for a single observed frequency (nu_obs) by computing the specific flux over the observation times.

Template Parameters:

PhotonGrid – Types of photon grid objects

Parameters:

• t_obs – Array of observation times

• nu_obs – Observed frequency

• photons – Parameter pack of photon grid objects

Returns:

Array of specific flux values at each observation time

template<typename ...PhotonGrid>
MeshGrid specific_flux(Array const &t_obs, Array const &nu_obs, PhotonGrid const&... photons)

Computes the specific flux at multiple observed frequencies.

Returns the specific flux (as a MeshGrid) for multiple observed frequencies (nu_obs) by computing the specific flux for each frequency and assembling the results into a grid. This method accounts for relativistic beaming and cosmological effects.

Template Parameters:

PhotonGrid – Types of photon grid objects

Parameters:

• t_obs – Array of observation times

• nu_obs – Array of observed frequencies

• photons – Parameter pack of photon grid objects

Returns:

2D grid of specific flux values (frequency × time)

template<typename ...PhotonGrid>
Array flux(Array const &t_obs, Array const &band_freq, PhotonGrid const&... photons)

Computes the integrated flux over a frequency band.

Computes the integrated flux over a frequency band specified by band_freq. It converts band boundaries to center frequencies, computes the specific flux at each frequency, and integrates (sums) the flux contributions weighted by the frequency bin widths.

Template Parameters:

PhotonGrid – Types of photon grid objects

Parameters:

• t_obs – Array of observation times

• band_freq – Array of frequency band boundaries

• photons – Parameter pack of photon grid objects

Returns:

Array of integrated flux values at each observation time

template<typename ...PhotonGrid>
MeshGrid spectra(Array const &freqs, Array const &t_obs, PhotonGrid const&... photons)

Computes the spectrum at multiple observation times.

Returns the spectra (as a MeshGrid) for multiple observation times by computing the specific flux for each frequency and transposing the result to get freq × time format.

Template Parameters:

PhotonGrid – Types of photon grid objects

Parameters:

• freqs – Array of frequencies

• t_obs – Array of observation times

• photons – Parameter pack of photon grid objects

Returns:

2D grid of spectra (frequency × time)

template<typename ...PhotonGrid>
Array spectrum(Array const &freqs, Real t_obs, PhotonGrid const&... photons)

Computes the spectrum at a single observation time.

Returns the spectrum (as an Array) at a single observation time by computing the specific flux for each frequency in the given array.

Template Parameters:

PhotonGrid – Types of photon grid objects

Parameters:

• freqs – Array of frequencies

• t_obs – Single observation time

• photons – Parameter pack of photon grid objects

Returns:

Array containing the spectrum at the given time

void update_required(MaskGrid &required, Array const &t_obs)

Updates the required grid points for observation.

Identifies grid points needed for interpolation at requested observation times.

Parameters:

• required – Mask grid to mark required points (modified in-place)

• t_obs – Array of observation times

Public Members

MeshGrid3d time

Grid of observation times.

class Coord

Represents a coordinate system with arrays for phi, theta, and t.

This class is used to define the computational grid for GRB simulations. It stores the angular coordinates (phi, theta) and time (t) arrays, along with derived quantities needed for numerical calculations.

Public Functions

Coord() = default

Default constructor.

inline auto shape() const

Returns the dimensions of the coordinate arrays.

Returns:

Tuple containing (n_phi, n_theta, n_t)

Public Members

Array phi

Array of azimuthal angles (phi) in radians.

Array theta

Array of polar angles (theta) in radians.

MeshGrid3d t

Array of engine time points.

Real theta_view = {0}

Viewing angle.

Performance Considerations

VegasAfterglow’s C++ core is designed for exceptional computational performance:

• Memory Access Patterns: Carefully optimized to minimize cache misses

• SIMD Optimizations: Takes advantage of vectorization where possible

• Multi-threading: Core algorithms designed for parallel execution

• Avoiding Allocations: Minimal heap allocations in critical computation paths

• Computational Approximations: Efficient numerical approximations for complex computations

These optimizations enable the generation of a 30-point single-frequency light curve in approximately 0.6 milliseconds on an Apple M2 chip with a single core, and full MCMC parameter estimation with 10,000 steps in seconds to minutes on standard laptop hardware.

Documenting C++ Code

When contributing to the C++ codebase, please follow these documentation guidelines:

Class and Function Documentation

Use Doxygen-style comments for all classes and functions:

/********************************************************************************************************************
 * @brief Brief description of the function/class
 * @details Detailed description that provides more information
 *          about what this function/class does, how it works,
 *          and any important details users should know.
 *
 * @param param1 Description of first parameter
 * @param param2 Description of second parameter
 * @return Description of return value
 * @throws Description of exceptions that might be thrown
 * @see RelatedClass, related_function()
 ********************************************************************************************************************/

Member Variable Documentation

For member variables, use inline Doxygen comments with the triple-slash syntax:

double energy; ///< Isotropic-equivalent energy in ergs
double gamma0; ///< Initial bulk Lorentz factor

Template Function Documentation

For template functions, make sure to document both the template parameters and the function parameters:

/********************************************************************************************************************
 * @brief Brief description of the template function
 * @details Detailed description of what the template function does.
 *
 * @tparam T The type of elements in the vector
 * @tparam Comparator The comparison function type
 * @param values Vector of values to be sorted
 * @param comparator Comparator function to determine sorting order
 * @return Sorted vector of values
 ********************************************************************************************************************/
template<typename T, typename Comparator = std::less<T>>
std::vector<T> sort_values(const std::vector<T>& values, Comparator comparator = Comparator()) {
    // Implementation details
}

Inline Function Documentation

For inline functions, use specialized documentation to explain why the function is inline and include important implementation details:

/**
 * @brief Compute the square of a value
 * @inlinefunc Performance-critical function used in inner loops
 *
 * @param x The value to square
 * @return The squared value
 *
 * @inline_details
 * Uses direct multiplication instead of std::pow for better performance.
 * Handles both positive and negative inputs correctly.
 */
inline double square(double x) {
    return x * x;
}

C++20 Attribute Documentation

For functions with C++20 attributes, use the specialized tags:

/**
 * @brief Calculate the inverse of a value
 * @nodiscard
 * @constexpr
 *
 * @param value The input value (must not be zero)
 * @return The inverse of the input value (1/value)
 * @throws std::invalid_argument if value is zero
 */
[[nodiscard]] constexpr double inverse(double value) {
    if (value == 0) throw std::invalid_argument("Cannot take inverse of zero");
    return 1.0 / value;
}

Special Member Function Documentation

For special member functions, use the dedicated aliases:

/**
 * @defaultctor
 * Initializes with default empty state.
 */
JetModel();

/**
 * @copyctor
 * @param other The jet model to copy
 */
JetModel(const JetModel& other);

/**
 * @moveassign
 * @param other The jet model to move from
 * @return Reference to this object
 */
JetModel& operator=(JetModel&& other) noexcept;

Private Member Documentation

Even though private members won’t appear in the public API documentation, they should be properly documented in the code for maintainability:

private:
    /**
     * @brief Calculate internal jet dynamics
     *
     * @param time Current simulation time
     * @return Energy distribution at current time
     */
    double calculateDynamics(double time);

    double energy_; ///< Internal energy storage

Example Class

Here’s an example of a well-documented class:

/********************************************************************************************************************
 * @class GaussianJet
 * @brief Implements a Gaussian jet profile where properties follow a Gaussian distribution with angle.
 * @details This class provides a smooth model for GRB jets, characterized by core angle theta_c,
 *          isotropic equivalent energy E_iso, and initial Lorentz factor Gamma0 at the center.
 ********************************************************************************************************************/
class GaussianJet {
public:
    /********************************************************************************************************************
     * @brief Constructor: Initialize with core angle, isotropic energy, and initial Lorentz factor
     * @param theta_c Core angle of the jet
     * @param E_iso Isotropic equivalent energy
     * @param Gamma0 Initial Lorentz factor
     ********************************************************************************************************************/
    GaussianJet(Real theta_c, Real E_iso, Real Gamma0) noexcept;

    /********************************************************************************************************************
     * @brief Energy per solid angle as a function of phi and theta, with Gaussian falloff
     * @param phi Azimuthal angle (unused)
     * @param theta Polar angle
     * @return Energy per solid angle with Gaussian angular dependence
     ********************************************************************************************************************/
    Real eps_k(Real phi, Real theta) const noexcept;

    /**
     * @brief Get the core angle of the jet
     * @nodiscard
     * @return Core angle in radians
     */
    [[nodiscard]] inline Real getTheta_c() const noexcept;

    /**
     * @brief Get the isotropic equivalent energy
     * @nodiscard
     * @return Energy in ergs
     */
    [[nodiscard]] inline Real getE_iso() const noexcept;

    /**
     * @brief Get the initial Lorentz factor
     * @nodiscard
     * @return Lorentz factor at jet core
     */
    [[nodiscard]] inline Real getGamma0() const noexcept;
};

// Implementation of inline methods would be in the .cpp file or in a separate
// inline header file, and should not appear in the API documentation.

For more details on Doxygen commands, see the Contributing page.
